Products

DESCRIPTION

Basic Info

After-sales Service	2 Year
Warranty	18 Months
Type	Semi-Trailer
Load Capacity	50T
Certification	ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
Wheel Base	8000-9000mm
Tread	1820mm
Grade	Heavy Duty
Independent Suspension Type	Cross Arm Type
Shape	Van-type
Axle Number	2/3/4
Tire Number	8/12/16/20
Self-dumping	Self-dumping
ABS Anti-lock Braking System	No ABS Anti-lock Braking System
Material	Steel
Condition	New
Transport Package	Bulk Ship/ RO-RO / Container
Specification	10500*2500*3560mm
Trademark	Sinotruk
Origin	Shandong, China
Production Capacity	15000/PCS

Product Description

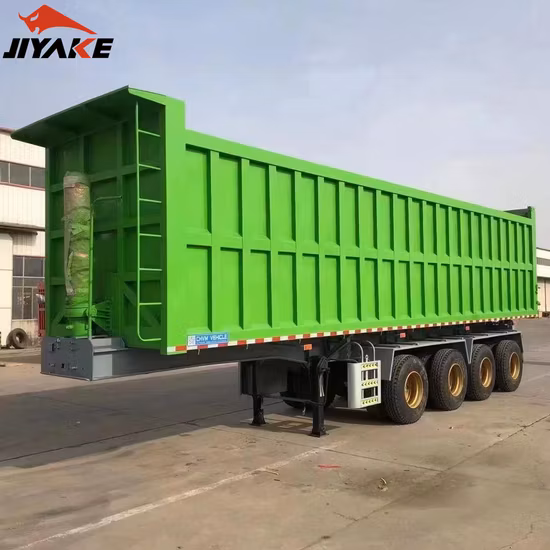

Cheap Heavy Duty 3 Axle 4 Axle 80 Ton Rear Unloading End Tipper Trailer 45 Cubic Meter Hydraulic Cylinder Tipper Trailer Rear Dump Semi Trailer for SaleMore DetailsProduct Description

MAIN DESCRIPTION
Overall Dimension	9.8m*2.5m*3m(L*W*H)
Tare Weight	8000kg
Pay Load	45ton
King Pin Setting	1220mm
RUNNING GEAR
Suspension	3 axle mechanical suspension with 11-pcs leaf spring
Axle	AQ,FUWA, BPW or STEYR axle, load capacity 13ton
Rims & Tires	Rim 8.0-20 or 8.5-20, tire 11.00-20 or 12.00-20
Brakes	Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
UNDER FRAME
Main Beam	I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam	Mild Alloy Q235
King Pin	Welded kingpin, size 50# (2'') or 90#(3.5'')
Landing Gear	Double sides operation, Static capacity 30Ton
CARGO BODY
Inside Dimension	9.3m*2.3m*1.5m(L*W*H)
Steel sheet	Floor thickness 8mm, side wall thickness 6mm
Hydraulic Jack	Full set of HYVA hydraulic system, front setting telescopic jack
Tailgate	One-piece tailgate with upper articulation, safety lock system
ELECTRICAL & PAINT
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector, 24V 7 pin plug socket
Paint	Sand blasting before painting, color upon request

Package and ShippingBuyers' FeedbackFAQ
Q1. Why choose us? What difference from other suppliers?
Shandong Jiyake Automobile Sales is a vehicle manufacturer, which integrates production, scientific research and sales.

• Save your budget -- Manufacturer direct sale, no middleman.
• Quick Response -- Working all the time, all kinds of social media, you could contact us directly. Most problems can be solved within 12 hours.
• Delivery guarantee -- 25-40 days after receiving the deposit.
• Production tracking -- We will actively inform you of the production progress every week to ensure that you are aware of the production situation.
• Inspection -- A inspection report to you before delivery.
• After-sales service -- After-sale guarantee service, secure your order.

Q2. Which markets do your vehicle export to?
We exported the flatbed trailers, sidewall trailers, Fence trailer, dump trucks, tipper trailers,Low bed trailer to all over the world, especially for the Africa Market and Mid east markets, the clients come from Djibouti, Ghana, Mozambique, Mauritania, Saudi Arabia, Tanzania, Benin, Indonesia, Thailand and so on.Q3. What can you buy from us?Semi Trailer,Flatbed Semi Trailer,Lowbed Semi Trailer,Dump Trailer,Tank Truck.Q4. What information should I let you know if I want to get a quotation?Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info you provide, the more accurate model and price you will get.Q5. Is it available to print our own brand on the vehicle?Totally acceptable as you wish.
